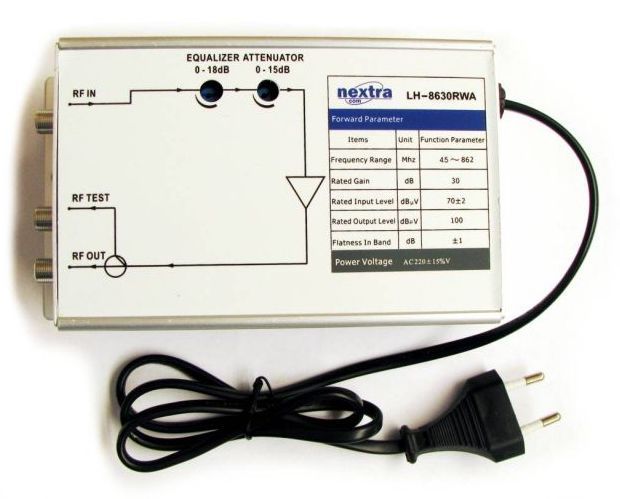

Home amplifier 860MHz, output 30dB, hybrid, nominal output level 100dB, power supply 220VAC/10W, tilt 0-18dB, attenuation 0-15dB, without reverse path. Product description - Specifications: 1. One-stage GaAs MMIC chip CATV amplifier 2. Hybrid RF push-pull type with low noise 3. Aluminum alloy case Performance characteristics: The LH8630RWA indoor unidirectional CATV amplifier (for buildings) contains an MMIC GaAs RF amplifier circuit, with low power consumption and good nonlinearity parameters. The indoor LH8630RWA unidirectional CATV amplifier (for buildings) has a direct path with an included SOT-115 package and a dedicated RF module, it does not contain a reverse path. The RF signal level at the output and the tilt level are adjustable by means of semi-adjustable potentiometers. The power source has high reliability and electric shock protection included. The case is made of aluminum alloy with good heat dissipation and a pleasant appearance Main technical features: Operating frequency: 45~862 MHz. Linearity in the band: ± 1.0dB. Return loss : &ge 14dB. Noise factor : &le 10dB. C/CTB ratio: &ge 58dB. C/CSO report: &ge 56dB. Nominal gain: 30 dB. Nominal input signal level: 72 dB. Packaging: box 1 pc.
