Server HPE ProLiant
Cod produs: P11050-421

Server HPE ProLiant ML350 Gen10, Tower 4U, Intel Xeon Silver 4208 (8 C / 16 T, 2.1 GHz - 3.2 GHz, 11 MB cache, 85 W), 16 GB DDR4 ECC, fara stocare, 4 x LFF, 500 W, Fara sistem de operare


12,07335 lei

Stoc epuizat
Setează alertă stoc
Disponibil ultima data în:
7 iunie 2023

ID #144953 Ai nevoie de suport?
Furnizează ID-ul unui operator
Codul produsului :  P11050-421
Fișa Tehnică :
Link producator :  support.hpe...
Garanție:  36 luni
Comercializat din 21/08/2019
Ridică din Alege Easybox
Disponibil ultima data in: 07/06/2023
Toate prețurile includ TVA
HPE ML350 Gen10 4208 1P 16G 4LFF Svr


Optiuni compatibile

Procesoare server
52 opțiuni disponibile

Memorii server
22 opțiuni disponibile

HDD-uri Server
56 opțiuni disponibile

PlatformaProLiant ML350 Gen10
Recomandat pentruMidsize Business
Procesoare incluse1
NucleuCascade Lake
ModelXeon Silver 4208
Numar nuclee8
Numar thread-uri16
Frecventa2.1 GHz
Frecventa turbo3.2 GHz
Smart Cache11 MB
Litografie14 nm
Capacitate memorie16 GB
Tip memorieDDR4 ECC
Compatibilitate DIMMRDIMM, LRDIMM
Sloturi memorie24
Configuratie memorie1 x 16 GB
Memorie maxima3 TB
Capacitate HDDFara HDD/SSD
Unitati stocare suportate4
Format unitati stocareLFF
Tip unitati stocareHot-Plug
Controller stocareHPE SmartArray E208i-a Gen10
Interfete suportateSATA 6G, SAS 12G
Nivele RAID0, 1, 5, 10
ChipsetIntel C622
Procesoare suportate2
Sloturi PCIe x164
Sloturi PCIe x84
USB 2.01
USB 3.01
LAN4 x 1GbE
Controller reteaHPE 369i
Administrare la distantaiLO 5
FormatTower 4U
Dimensiuni46.3 x 17.4 x 64.8 cm
Greutate21 kg
Surse suportate2
Surse incluse1
Putere sursa500 W
USB 2.01 (Management)
USB 3.02
RJ-454 + 1 (Management)
USB 3.02
Sistem de operareFara sistem de operare

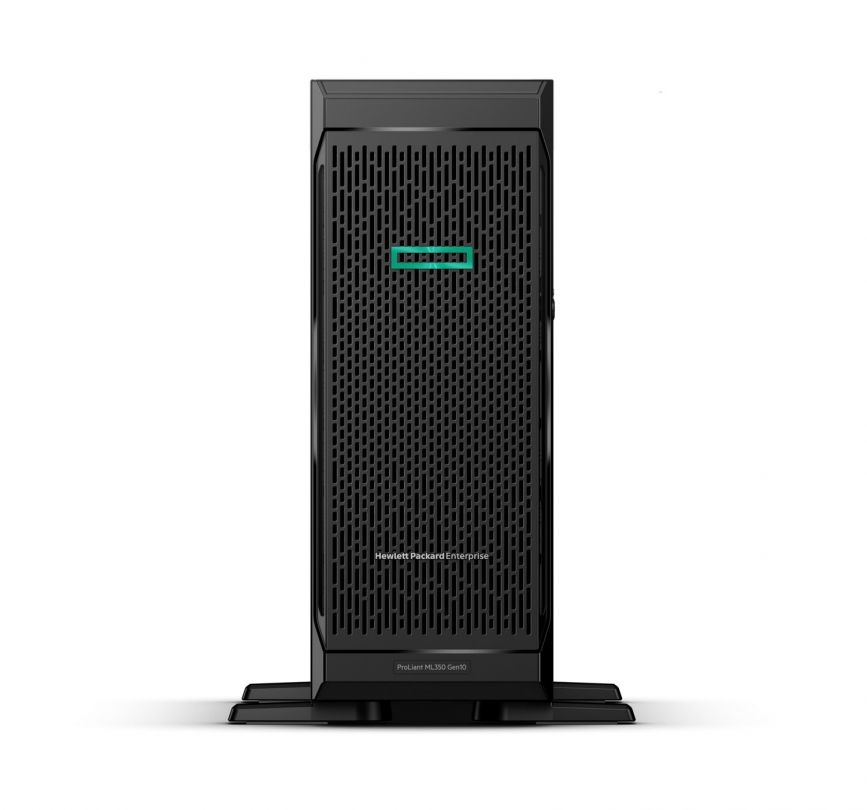

hpe ML350 gen10 front perspective with bezel open

The HPE ProLiant ML350 Gen10 leverages the new scalable processors to deliver a 71%increase in performance and a 27% boost in core counts. This is a very flexible platform that can also support up to four double-wide GPUs for a dense Virtual Desktop infrastructure or to support graphics-intensive workloads. An optional storage cage also supports up to eight NVMe solid state drives for increased performance and resiliency. This tower server can also be rack mounted with an optional tower to rack conversion kit that support both this server and the HPE ProLiant ML110 Gen10


You can install one or two Intel Scalable processors from either Bronze, Silver, Gold, or Platinum families with up to 28 cores. Each processor supports up to six memory lanes but to support the full memory capacity of 3TB will require a Scalable processor with an “M” designation that are designed to support up to 1.5TB of memory each. Processors without the “M” only support up to 768GB each. Turbo Boost and Intel Hyper-Threading may not be available on certain processor models. Power is provided by either a 500W, 800W or 1600W flex slot hot plug power supply in redundant or non-redundant configurations.


HPE’s 2666MHz DDR4 SmartMemory delivers an 11% increase in performance over 2400MHz memory modules. There are 24 memory slots total on the system board, with each processor assigned 12 memory slots. As previously mentioned, each processor supports six memory channels that will support two memory modules each. To enable the maximum supported memory at 3TB requires and appropriate CPU with an “M” designation and 128GB Load Reduced (LRDIMM) memory modules. Using Registered (RDIMM) memory modules will only support up to 768GB using 32GB memory modules operating at speeds of up to 2400MHz. Mixing of LRDIMMs and RDIMMs is not supported.


Storage on the HPE ML350 Gen10 platform is generous with support for up to 24 x 2.5-inch SAS, SATA SSDs HDDs and up to eight SFF NVMe PCIe drives. The 2.5-inch chassis configuration supports a default drive cage on the lower portion of the chassis that supports 8x 2.5-inch drive bays. Two additional drive cages each of which can support eight 2.5-inch drives can also be installed bringing the total to 24 2.5-inch drive bays. NVMe drives are only supported on the 2.5-inch chassis and must be installed in the center-mounted optional Express Bay drive cage. An NVMe kit has two x4 Direct Attached PCIe NVMe riser boards each of which can support four drives or a total of eight with both risers installed. There is also a 3.5-inch drive bay chassis configuration that supports up to 12 front-mounted drive bays, total. The chassis configurations for the 3.5-inch chassis is very similar with three separate drive cages each of which can support four 3.5-inch drives for a total of 12. Each configuration has a control panel at the top with system health, NIC status, two USB 3.0 ports and a dedicated iLO service port. A front bezel with security lock is standard equipment on this system. There is also a single MicroSD card slot located adjacent to PCIe slots 5-8 below the power supply. Managing the hard drives is either the integrated HPE Smart Array S100i SR Gen10 SW RAID. M.2 drives are supported by a universal enablement card kit and is limited to PCIe slots 1-4 and supports only one enablement kit total. M.2 supports software RAID only. Some of these configurations may require a redundant fan kit.


proliant ML350 gen10 server rear view

Eight PCIe 3.0 slots provide connections for a number of devices to support your workload. PCIe slots 1-4 located in the lower back of the chassis are supported by CPU 1, and optional GPUs can be installed in slots 1 and 3. PCI slots 5-8 are active with the addition of a second processor with slots 5 and 7 supporting optional GPUs. You can install up to four double-width GPUs like the Nvidia P4000, P6000 and Tesla P40 but only two Nvidia Tesla M10 quad GPU modules. There is an embedded four port 1GbE on the back of the system but you have a lot of choices for network communications with 1GbE, 10GbE, 10/25GbE, and 100GbE QSFP. The same goes for Smart Array HD/RAID controllers—lots of choices.


Management of the system is made easy with HPE’s suite of management tools including HPE integrated Lights Out (iLO) Advanced for out-of-band management of the system. HPE OneView helps with even more management tools for converged infrastructures. Security on all of the Gen10 servers has also been updated with Runtime Firmware Validation, which is part of the iLO Advanced Premium Security Edition. Secure recovery allows you to roll back the firmware to the last known version that was not compromised.


The HPE ProLiant ML350 server tower is an excellent addition to any size business, either in the front office, branch office or rack mounted in your server room once your startup business has outgrown its confines. The ML350 Gen10 packs in the performance with support for up to two 28-core top of the line processors, up to 3TB of memory, and a maximum storage capacity of up to 184TB using SFF drives.
