Descriere
Performanță |

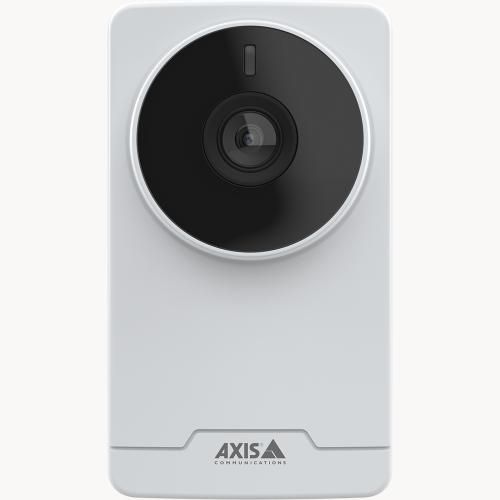

Type | IP security camera |
Placement supported | Indoor & outdoor |
Connectivity technology | Wired |
Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
Languages support | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS |
Number of languages | 12 |
Day/night mode | Yes |
Wide Dynamic Range (WDR) | Yes |
Infrared (IR) cut-off filter | Yes |
Design
Product colour White Housing material Aluminium,Plastic Mounting type Ceiling/Wall Form factor Box LED indicators Yes
Aparat de fotografiat
Camera shutter speed 1/19000 s Minimum illumination 0.03 lx Lens viewing angle, vertical 55 ° Lens viewing angle, horizontal 103 °
Senzor de imagine
Sensor type CMOS Number of sensors 1 Optical sensor size 1/2.9 "
Sistem de lentile
Fixed focal length 3.16 mm Number of lenses 1
Vizibilitate nocturnă
Night vision Yes
Video
Video compression formats AVC,H.264,H.265,HEVC,M-JPEG Maximum resolution 1920 x 1080 pixels Frame rate 30 fps Image quality adjustment Brightness,Colour depth,Contrast,Saturation,Sharpness Privacy masking Yes Video streaming Yes Supported graphics resolutions 320 x 240,640 x 360,1280 x 960,1920 x 1080 (HD 1080) Bit rate control Variable Bit Rate (VBR) Text caption overlay Yes Supported video modes 1080p Video intelligence analytic Yes
Reţea
Networking standards IEEE 802.1x Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQTT v3.1.1, Syslog, Link-Local-Adresse (ZeroConf) Ethernet LAN Yes Quality of Service (QoS) support Yes
Medii de stocare
Flash memory 512 MB Compatible memory cards MicroSD (TransFlash),MicroSDHC Built-in HDD No
Conexiune
Ethernet LAN (RJ-45) ports 1
Securitate
Security algorithms EAP-TLS,HTTPS,SNMP IP address filtering Yes
Managementul energiei
Power source type PoE Power consumption (max) 4.3 W Power consumption (typical) 2.2 W Power consumption (Power over Ethernet (PoE)) 4.3 W DC output voltage 12 DC output current 2.5 A
Conditii de mediu
Operating temperature (T-T) 0 - 35 °C Operating relative humidity (H-H) 10 - 85 % Storage temperature (T-T) -40 - 65 °C Storage relative humidity (H-H) 5 - 95 %
Greutate şi dimensiuni
Width 60 mm Depth 93 mm Height 105 mm Weight 137 g
Conţinutul de ambalaje
Number of cameras 1
