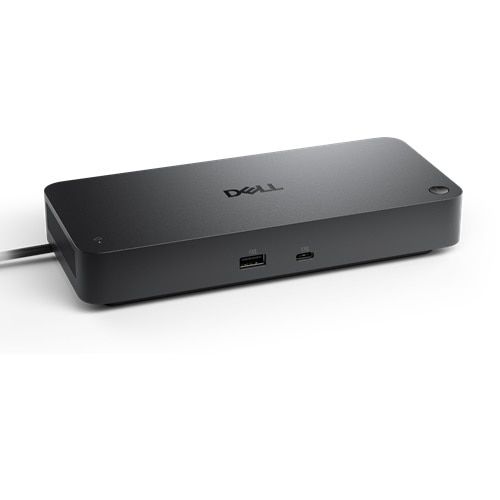

DELL PRO SMART DOCK SD25 180W Connectivity Technology: Wired, Number of Displays Supported: 4, Host PC Management: MAC address pass-through, PXE Boot, Dock Power Button Sync, Wake-On-LAN, WLAN to LAN switch, Kernel Direct Memory Access (DMA) protection, Dock Management Features: Remote firmware
| DELL PRO SMART DOCK SD25 130W Connectivity Technology: Wired |
| Number of Displays Supported: 4 |
| Host PC Management: MAC address pass-through |
| PXE Boot |
| Dock Power Button Sync |
| Wake-On-LAN |
| WLAN to LAN switch |
| Kernel Direct Memory Access (DMA) protection |
| Dock Management Features: Remote firmware updates without a PC |
| Host PC based firmware updates |
| Firmware update on disconnect |
| Port Disablement independent of PC |
| Device Supported: Notebook |
| DP1.4 with Display Stream Compression: 4 x WQHD (3440 x 1440) 60Hz |
| 3 x WQHD (3440 x 1440) 60Hz |
| 2 x 5K (5120 x 2160) 60Hz |
| 1 x 6K (6144 x 3456) 60Hz |
| DP1.4 without Display Stream Compression Up to: 4 x HD (1280x720) 60Hz |
| 3 x FHD (1920x1080) 60Hz |
| 2 x QHD (2560x1440) 60Hz |
| 1 x 4K (3840 x 2160) 60Hz |
| Ethernet Technology: RJ45 Ethernet port |
| 2.5GbE |
| ideo interfaces: 2 x DP1.4 |
| 1 x HDMI 2.1 |
| 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4 |
| USB Ports (Power): 4 x USB-A 3.2 Gen 2 (4.5W each) |
| 1 x USB-C 3.2 Gen 2 (15W) |
| 1 x USB-C Multi-function DisplayPort (7.5W) |
| All deliver power with or without PC |
| USB Power Delivery: 130W (Dell systems) |
| 96W (non-Dell systems) |
| USB Ports (Data Only): 4 x USB-A 3.2 Gen 2 (10 Gbps) |
| 1 x USB- C 3.2 Gen 2 (10 Gbps) |
| Operating System Supported: Windows 10 |
| Windows 11 |
| Ubuntu |
| Red Hat Enterprise Linux |
| ChromeOS |
| macOS |
| Maximum Power Supply Wattage: 180W |
| Kensington Security Slot: Yes |
| Limited Warranty: 3 Year |
