Descriere
Caracteristici |
UPS topology | Double-conversion (Online) |
Noise level | 35 dB |
Output power capacity | 1.5 kVA |
Input frequency | 40/70 Hz |
Output power | 1500 W |
Input operation voltage (max) | 276 V |
Input operation voltage (min) | 176 V |
Output operation voltage (max) | 240 V |
Output operation voltage (min) | 200 V |
Efficiency | 92.5 % |
Waveform | Sine |
Output frequency | 50/60 Hz |
Number of input phases | 1 |
Number of output phases | 1 |
Input power factor | 0.99 |
Output power factor | 1 |
Output voltage Total Harmonic Distortion (THD) | 3 % |
Auto power off | Yes |
Conexiune

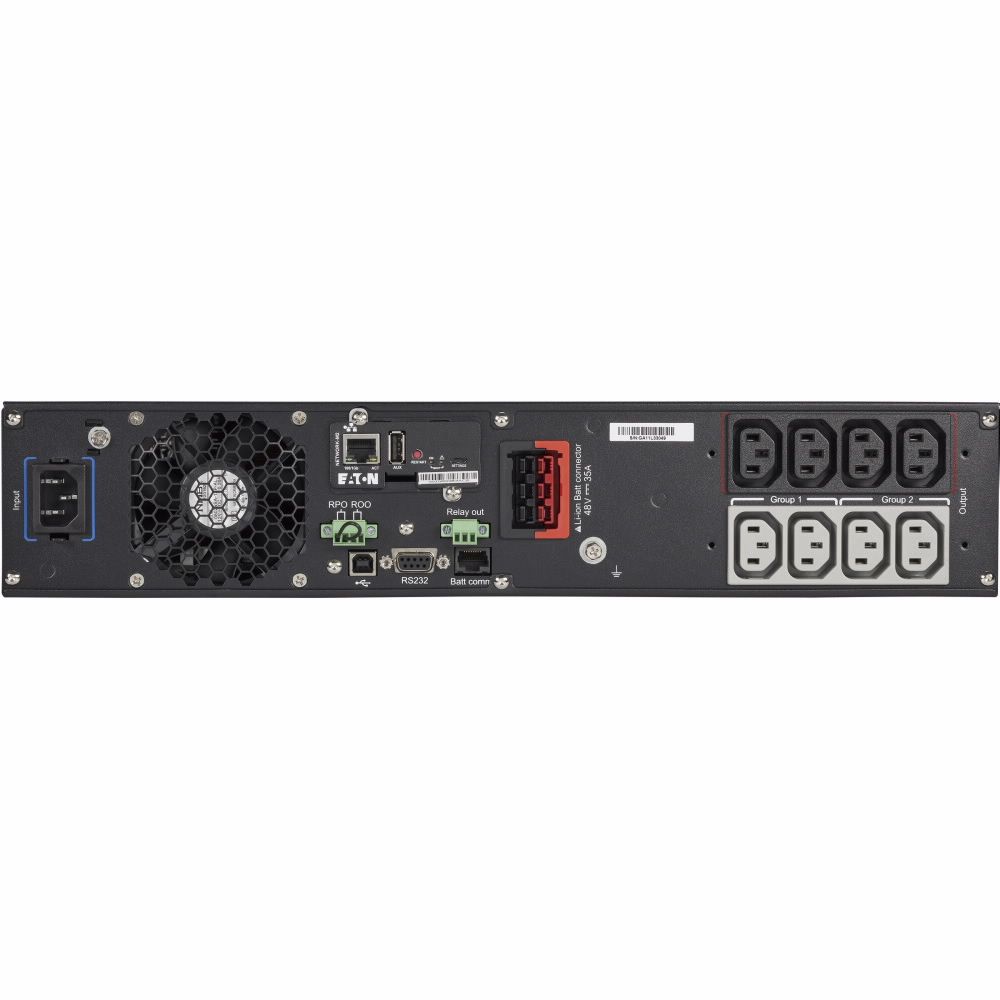

AC outlets quantity 8 AC outlet(s) AC outlet types C13 coupler Power plug C14 coupler USB port Yes USB 2.0 ports quantity 1 Serial interface Yes Serial interface type RS-232 Serial ports quantity 1
Baterie
Battery technology Lithium-Ion (Li-Ion) Hot-swap battery Yes
Design
Product colour Black,Silver Form factor Rackmount/Tower Rack capacity 2U Certification IEC/EN 62040-2, FCC, CISPR22, CE, CB, TUV, cULus, EAC, RCM, KC Display type LCD Safety IEC/EN 62040-1, UL 1778, CSA 22.2
Conditii de mediu
Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 0 - 96 % Operating altitude 0 - 3000 m
Detalii tehnice
Sustainability certificates ENERGY STAR
Greutate şi dimensiuni
Weight 15880 g Width 440 mm Depth 450 mm Height 86.5 mm
Datele de ambalare
Cables included Output power cable,Serial Rack mount kit Yes Quick installation guide Yes
Date logistice
Harmonized System (HS) code 85078000
Alte caracteristici
Bypass Internal
