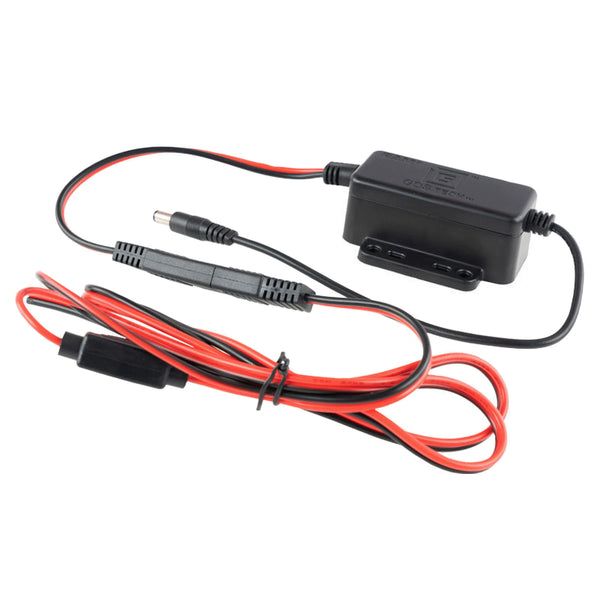

GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm
| The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. |
| When it comes time to upgrade |
| avoid any rewiring by simply unplugging the power connector and attaching the new charger components. |
| This hardwire charger has an input of 20-60VDC input |
| making it ideal for forklift mounts and material handling applications. |
| Product features - RAM-GDS-CHARGE-V9U: |
| Input voltage: 20-60V DC |
| Output voltage: 12V DC |
| Output current: 3 |
| 5A max. |
| Input connector: Male 5.5mm OD x 2.5mm ID Barrel Connector |
| Input cable length: ca;120 cm |
| Output cable length: ca;20 cm |
| Operating temperature: -10°C bis +70°C |
| Storage temperature: -40°C bis +70°C |
| Integrated protection against overvoltage |
| short circuit & reverse polarity |
| Certifications - FCC |
| IC |
| CE |
| UKCA |
| RCM |
| SAE J-1113-5a |
| 18AWG |
| IP66 |
| WEEE |
| e-Mark and RoHS |
