Conexiune
Host interface	USB4
Ports quantity	5
Hub interfaces	HDMI,USB 3.2 Gen 2 (3.1 Gen 2) Type-A,USB 3.2 Gen 2 (3.1 Gen 2) Type-C,USB Type-C
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI version	2.1
USB Type-C DisplayPort Alternate Mode	Yes

Caracteristici

Maximum resolution (HDMI) 7680 x 4320 pixels Product colour Grey Data transfer rate 10000 Mbit/s Plug and Play Yes Housing material Aluminium USB Power Delivery Yes USB Power Delivery up to 100 W Supported graphics resolutions 1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160,7680 x 4320 Number of displays supported 1

Managementul energiei

Input voltage 20 V Output current 4.75 A Output voltage 20 V Input current 5 A Power plug type Type C

Cerinţe de sistem

Windows operating systems supported Yes Mac operating systems supported Yes Other operating systems supported ChromeOS Minimum system requirements Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops. GPU and video source: DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz DisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above * Recommended Graphics GPUs : Intel® UHD graphics for 11th Gen Intel® processors or above * Notes: Mac® computers support up to 4K 60Hz on an 8K HDMI™ display

Greutate şi dimensiuni

Weight 74 g Width 116.31 mm Depth 45 mm Height 11 mm

Datele de ambalare

Package width 189.9 mm Package depth 85 mm Package weight 138 g Package type Box Package height 17.5 mm Quantity per pack 1 pc(s)

Conţinutul de ambalaje

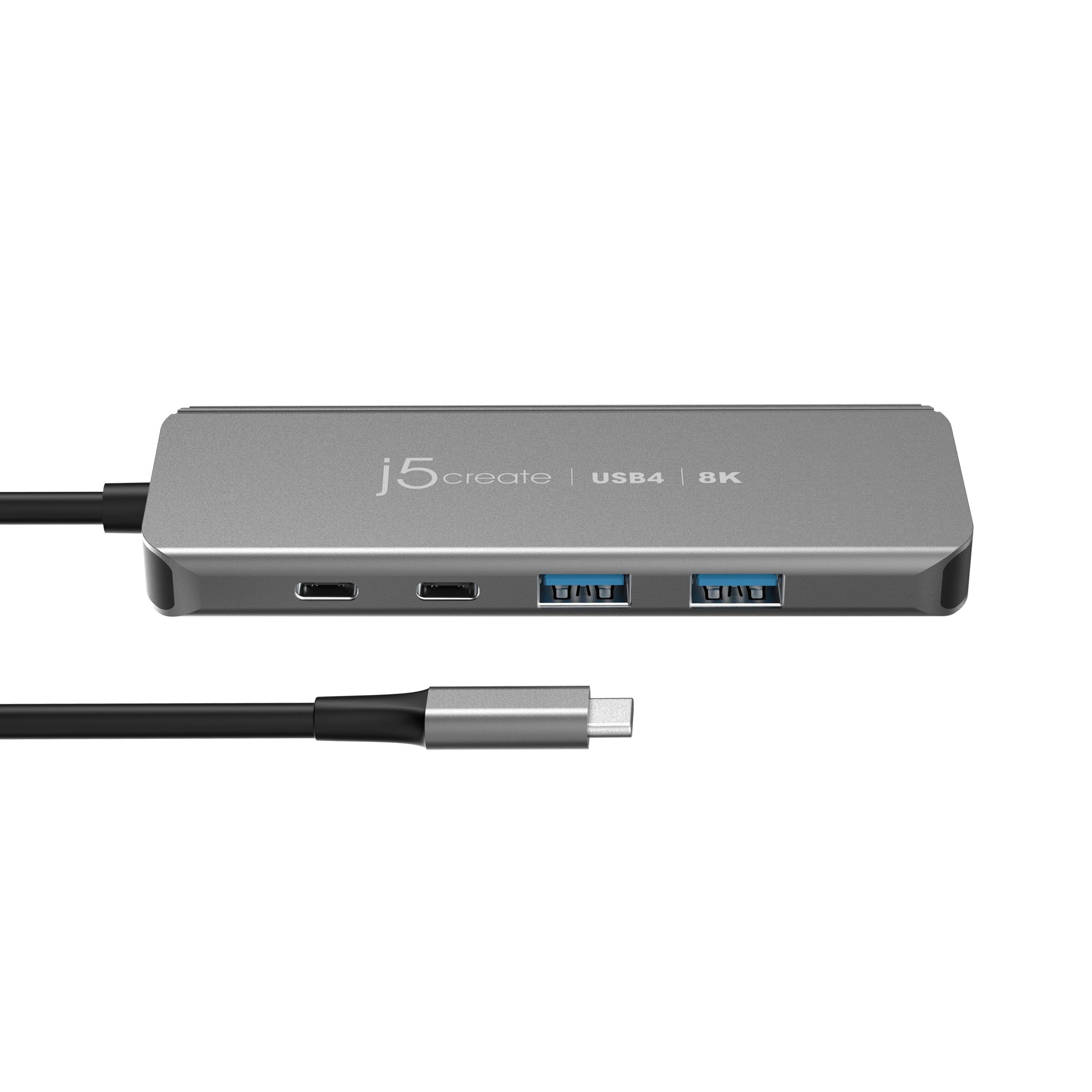

Packaging content 1 - JCH453 USB4® 8K60 Slim Hub 1 - Quick Installation Guide (QIG)

Conditii de mediu

Operating temperature (T-T) -1 - 41 °C Storage temperature (T-T) -17 - 68 °C Operating relative humidity (H-H) 0 - 85 % Storage relative humidity (H-H) 0 - 85 %
